810mm USD Front Fork Triple Clamp Bar Riser 150cc 200c 250cc PIT TRAIL DIRT BIKE
$49.55
$61.94

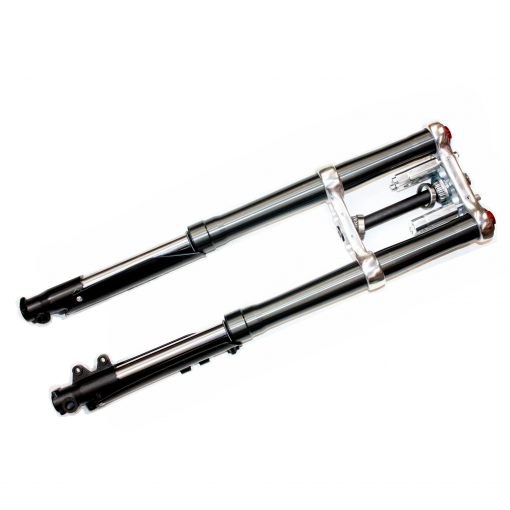

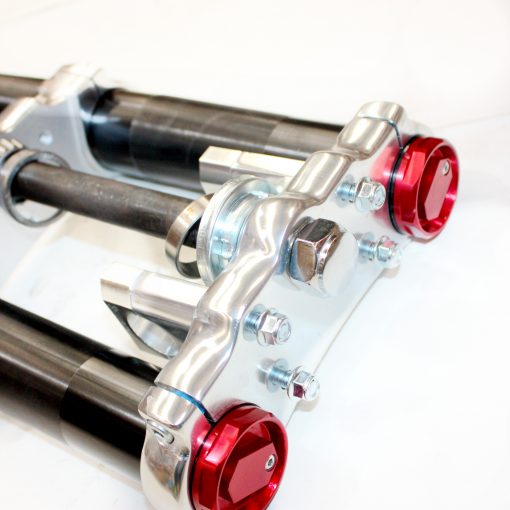

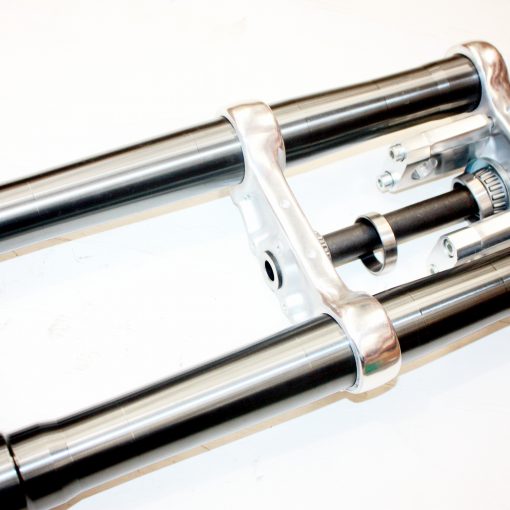

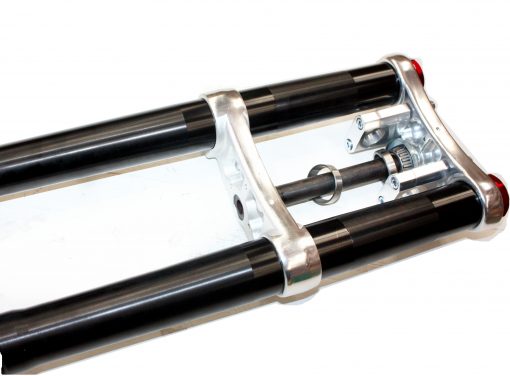

SKU:PE20-E Brand New 810mm Up Side Down (USD) Front Fork Triple Clamp Bar Riser 150cc 200cc 250cc PIT Trail Dirt Bike TOTAL LENGTH (from leg top to wheel axle centre) approx 810mm DISTANCE BETWEEN UPPER AND LOWER CLAMP approx 195mm DIAMETER OF FORK LEG FOR THE CLAMP (upper / lower) 51mm / 54mm DIAMETER OF THE HEAD STEM BOLT approx 22.96mm DIAMETER OF THE AXLE HOLE approx 15mm INNER DIAMETER OF THE BAR RISER approx 28mm DISTANCE BETWEEN THE FRONT CALIPER MOUNTING HOLES (bolt centre to bolt centre) approx 50mm Tag : PIT PRO, PIT Bike, Trail Bike, Dirt Bike, Motorcross Bike, MX Bike
