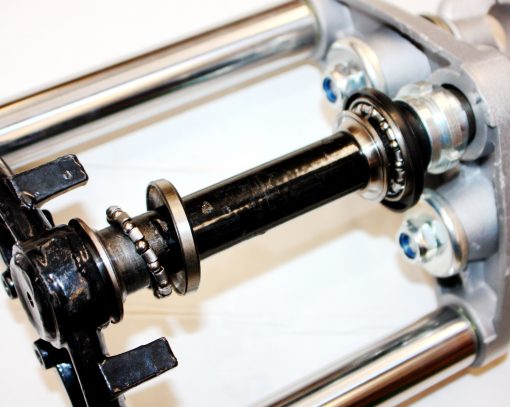

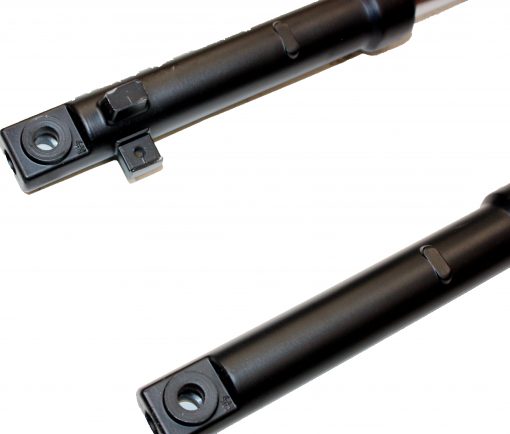

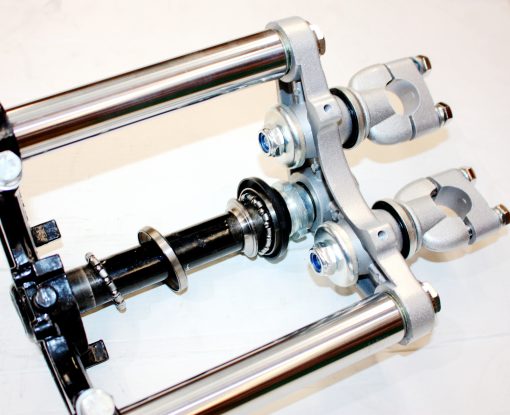

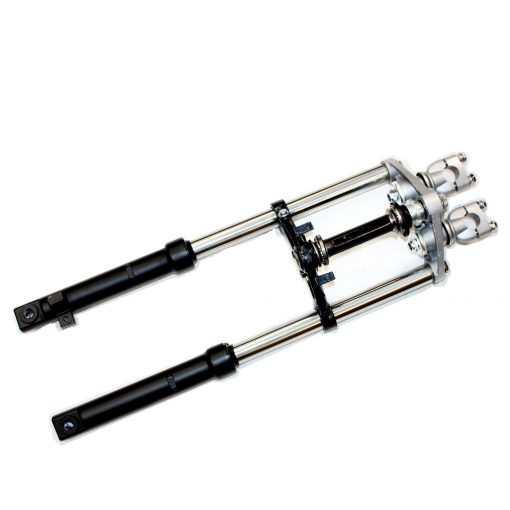

SKU:PE20-A Brand New 540mm Drum Brake Front Fork Triple Clamp Bar Riser 50cc 70cc 110cc PIT Dirt Bike TOTAL LENGTH (from leg top to wheel axle centre) approx 540mm DISTANCE BETWEEN UPPER AND LOWER CLAMP approx 145mm DIAMETER OF FORK LEG FOR THE CLAMP approx 28mm DIAMETER OF THE HEAD STEM BOLT approx 23.35mm DIAMETER OF THE AXLE HOLE approx 12mm INNER DIAMETER OF THE BAR RISER approx 22mm Tag : PIT PRO, PIT Bike, Trail Bike, Dirt Bike, Motorcross Bike, MX Bike
