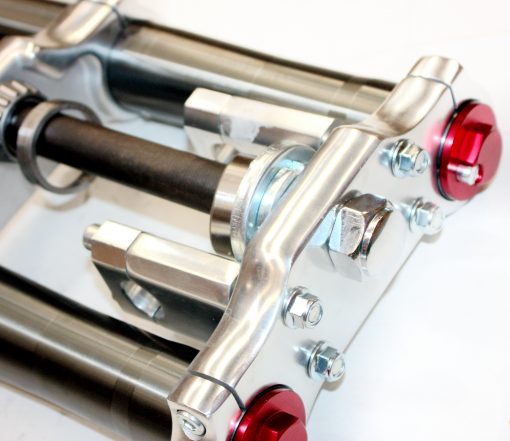

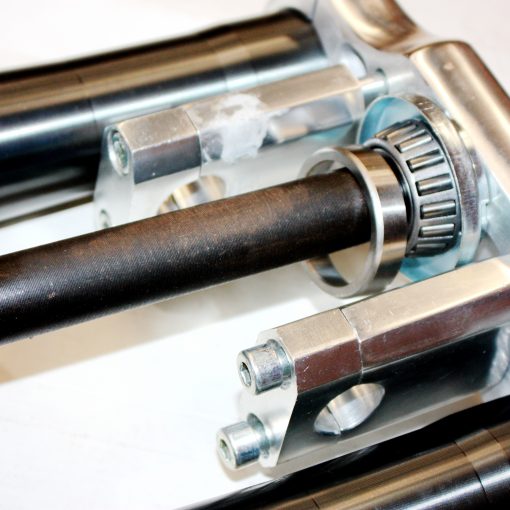

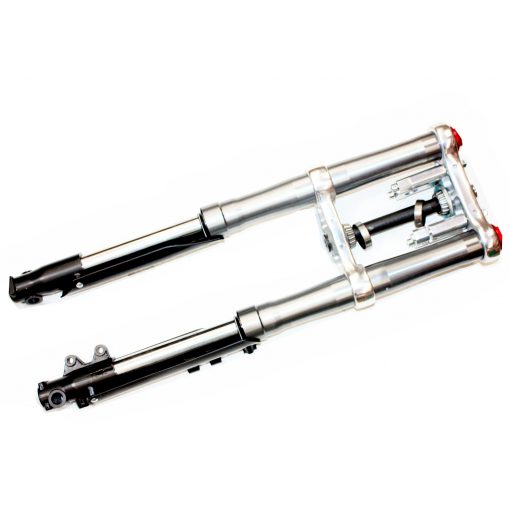

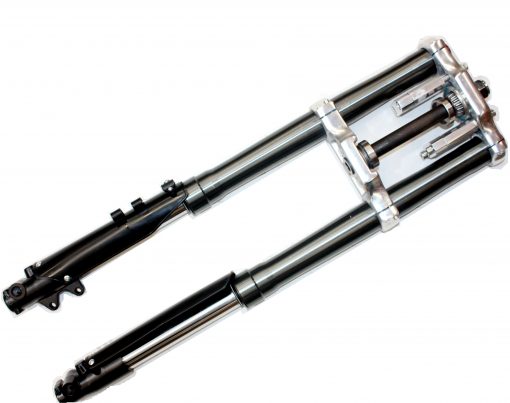

SKU:PE20-D Brand New 735mm Up Side Down (USD) Front Fork Triple Clamp Bar Riser 125cc 140cc PIT Dirt Bike TOTAL LENGTH (from leg top to wheel axle centre) approx 735mm DISTANCE BETWEEN UPPER AND LOWER CLAMP approx 170mm DIAMETER OF FORK LEG FOR THE CLAMP (upper / lower) 45mm / 48mm DIAMETER OF THE HEAD STEM BOLT approx 22.25mm DIAMETER OF THE AXLE HOLE approx 15mm INNER DIAMETER OF THE BAR RISER approx 22mm DISTANCE BETWEEN THE FRONT CALIPER MOUNTING HOLES (bolt centre to bolt centre) approx 45mm Tag : PIT PRO, PIT Bike, Trail Bike, Dirt Bike, Motorcross Bike, MX Bike
