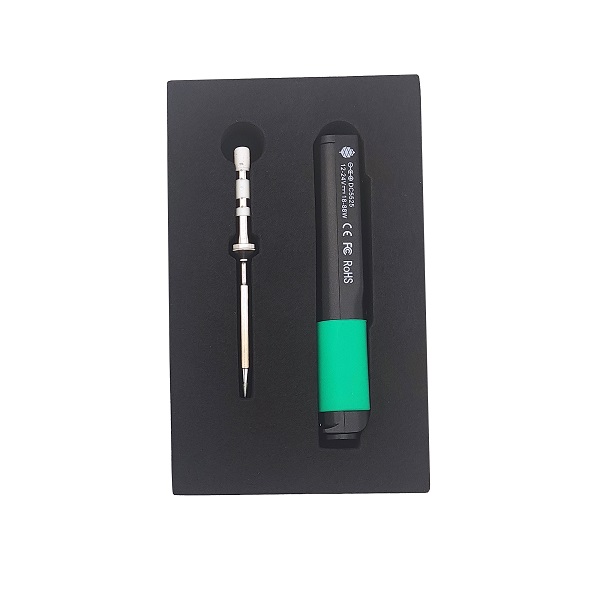

PINECIL – Smart Mini Portable Soldering Iron (Version 2)

PACKAGE Dimensions: 15cm x 9cm x 2.2cm Weight: 80 grams BODY Dimensions:  155mm with solder tip / 103mm without solder tip x 12.8mm x 16.2mm Weight: 28g with solder tip / 18g without solder tip Build:  Plastic with metal clip (Handle) Color: Black (case)/ Green (Sleeve) PLATFORM OS: Ralim’s IronOS build Chipset: Bouffalo BL-706 CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz DISPLAY Type: OLED White Colour Monochrome Display Size: 0.69 inches Resolution: 96x16pixels MEMORY Internal Flash Memory: 192KB System Memory: 132KB SRAM Expansion: None POWER PORTS USB type C: PD and QC 3.0 12V-20V 3A Barrel Jack: DC5525, 12V-24V DC 3A TIP Type B2 Length: 86mm Weight: 8.2g FEATURES Capable received power from either USB-C port or barrel jack. GPIO break-out thru USB-C port CERTIFICATION FCC CE RED ROHS PACKAGE CONTENTS Pinecil Soldering Iron version 2 ST (Short Tip)-B2 Soldering Tip Device Warranty: 30 Days
