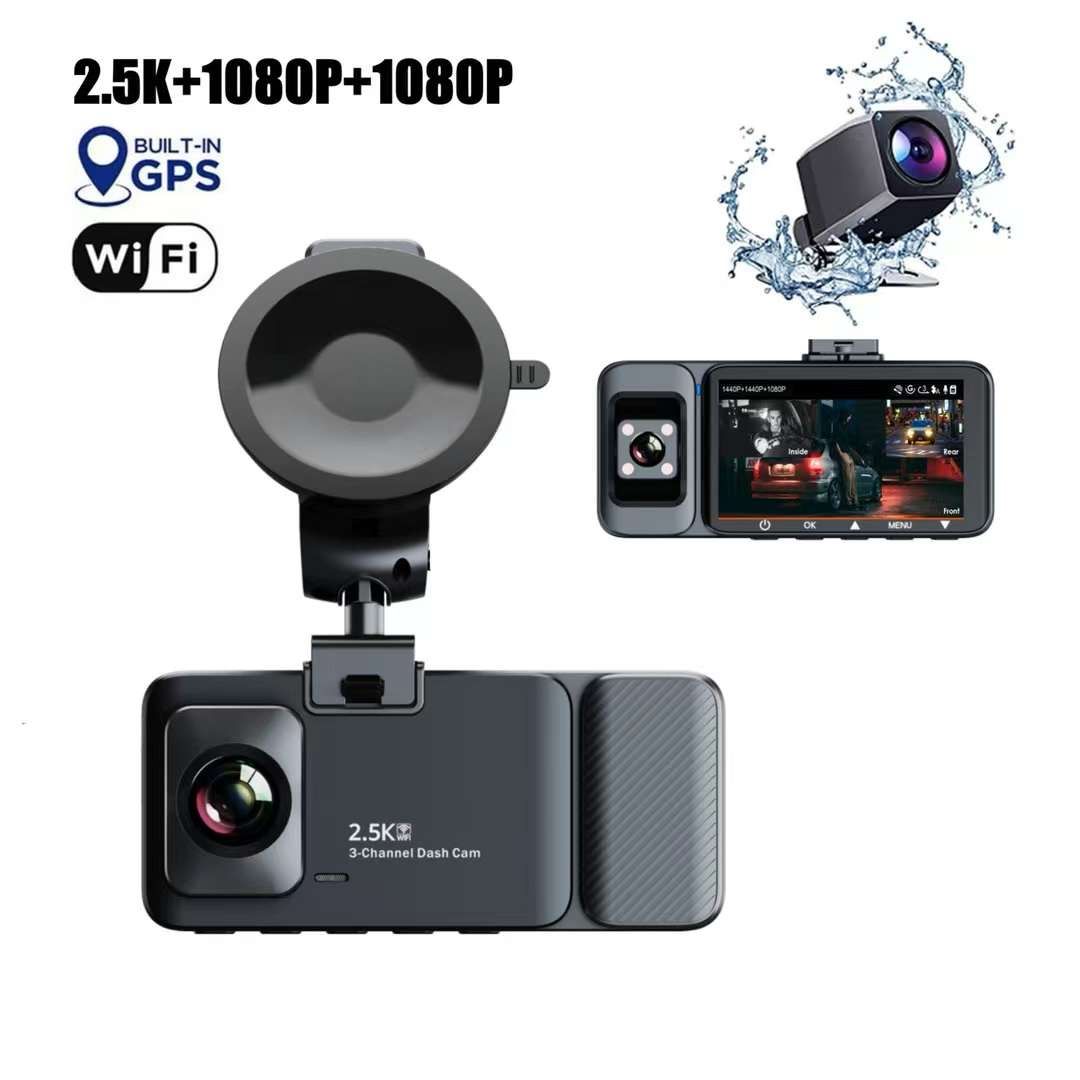

3 CHANNEL K02 DASH CAM 2.5K 1080P WITH BUILTIN GPS WIFI – Detail: Project Name K02 Product Solutions Based On NT9656X, 3 Inch LCD, 3 -Way Camera, Multi -Function Expansion Card Machine Version Number V0.1 Specifications Conventional Specification Processor NOVATEK NT9656X DDR Built -In 1GB DDR3 Flash 8MB SPI NORFlash Image Sensor A 2K/2.5K, Front Photo Image Sensor B GC2053, In The Car Image Sensor C GC2053, Pull The Line Image Sensor D / Lens A Client Selection, Front Photo Lens B Client Selection, In The Car Lens C Client Selection Pull The Line Lens D / Maximum Video Resolution 2.5K 1080 1080P/2k 1080 1080P /1080 1080 1080P The Maximum Photo Resolution (Screenshot) A B C：2K 1080P 1080P Coding H.264/H.265 Video Coding 4Mbps~8Mbps（1080P） Video Encoding Format MP4 Photo Format JPEG Collision Sensor Three -Axis Acceleration Sensor Record Mode 3 Minutes Cycle Video (Default) Storage TF Card (Class 10 Or Above, The Maximum Support 128G) Video Output / Start Time <7s (Power -On To Screen Display) Working Voltage Range 5V~5.3V The Rated Work Voltage DC 5V Working Current TBD Quiescent Current <500ua Work Temperature (℃) -20~70℃ Storage Temperature (℃) -30~80℃ Display 3 “Inch Screen Super Capacitor/Battery Compatible Supercapacitors/Batteries WIFI 2.4G WiFi Trumpet √ Speaker Amplifier √ Microphone √ USB Function PC CAM/POWER/Storage Interface T-C Button This Machine 5 Key Reset Button √ Power Supply USB 5V Safety / Customized Specifications GPS Compatible (Drawing Module) Stuck Hot Plug -In / Power Detection Battery Electricity Detection RTC Button Battery Storage Time APP Other
